iBoin-VPC People Counter

Technical feature

  • High-precision counts(>97%)
  • Strong, compact, reliable
  • Binocular 3D stereo vision cameras
  • Built-in infrared LED lamp, suitable for all kinds of lighting condition (even it’s all black around)
  • Adaptability: can distinguish between bi-directional, side by side, stranded, wandering, luggage, etc

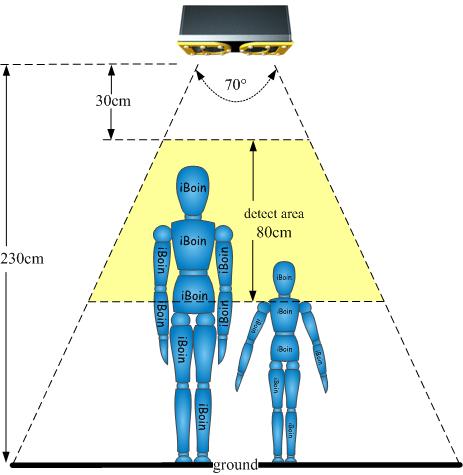

  • Per camera can detect door width is 120cm
  • Rich API software interface to facilitate secondary development
  • 4 interfaces, easy to use
  • Independent 10 I/O control interfaces
  • Easy to install, software friendly
  • DSP is embedded & stand-alone
  • Can work in a large temperature difference ,low power consumption
  • Can be used in the case of step
  • Can be equipped with GPS/GPRS module
intro_eng_1 intro_sc_2
intro_sc_3

Product brief introduction

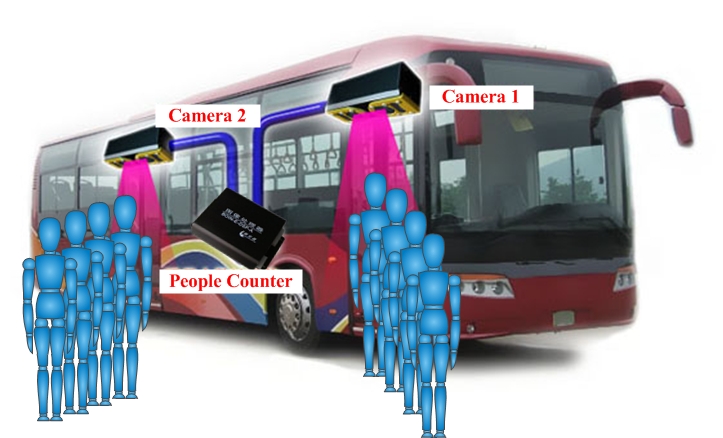

iBoin-VPC (BUS VIDEO PEOPLE COUNTER), is a compact precision, based on binocular stereo vision(Binocular Stereo Camera) technology of embedded products for non-contact. The product can be used in buses, metros, trains, steamer ship, shopping malls, building channels and other various places that required statistical passenger. It can be easily installed in the door, roof, walls, ceilings and other parts.

VPC can accurately determines the number of people and their access direction by analysis all the height、image、shape, orientation of the object in the image captured by binocular camera; then VPC generate an access log after overlay date and time (or Longitude/Latitude/Speed information). Binocular camera built-in infrared LED lamp can be adapted to any type of lighting condition, even black can work properly. Binocular camera’s built-in infrared LED lighting can adapt to any light environment, and can work properly even if the environment is black.

The records of the counting people can be real-time transferred via RS485, RS232, TCP/IP or can be download by USB flash disc. Built-in standalone digital I/O ports can be connected to other devices or switch device. If there is Bus DVR(Digital Video Recorder) or Vehicle – GPS/GPRS, you can tag the video when someone passed for later playback retrieval and manual checks. Connections are as follows, such as connecting door switch, you can set when the door is closed, the counter stops counting.

Installation sample

Single-door installation sample

Single-door installation sample

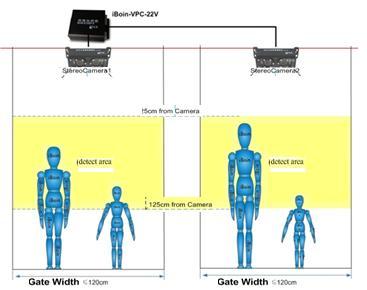

Two-door installation sample

Two-door installation sample

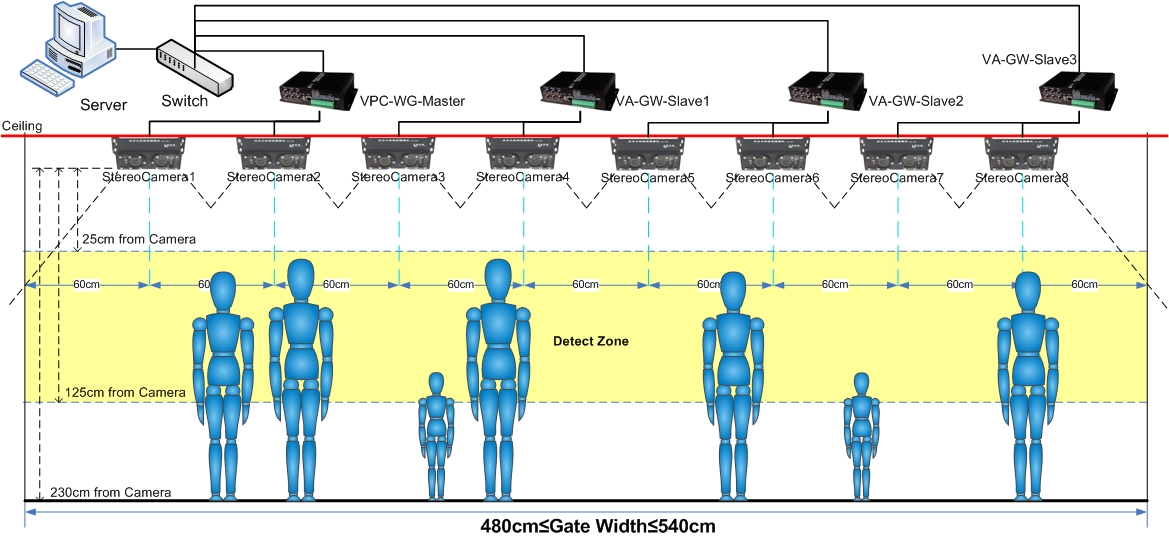

Wide-door installation sample

Wide-door installation sample

Multiple door installation sample

Multiple door installation sample

Each counter can connect to one or two StereoCameras to inspect front and rear doors’ channel respectively. Or connect multiple StereoCameras with counters, you can detect 1.2 m-10 m channel. If three or more of the doors of the car, you can have multiple counters and multiple StereoCameras wired up, and may share a common GPS/GPRS module or serial port to transfer the data.

Model Description
iBoin-VPC-21V Single door counter, containing one camera
iBoin-VPC-22V Two doors counter, containing two cameras
iBoin-VPC-21V-GGM Single door counter with GPS/GPRS Module , containing one camera
iBoin-VPC-22V-GGM Two doors counter with GPS/GPRS Module , containing two cameras
iBoin-VPC-WG Wide-door counter,Adding a stereoscopic cameras, increasing the width 60-70cm detection
iBoin-VPC-MG Multiple door counter, each counter can connect 1 or 2 binocular camera
iBoin-VPC-MG-GGM Multiple door counter, each counter can connect 1 or 2 binocular camera, containing one GPS/GPRS module

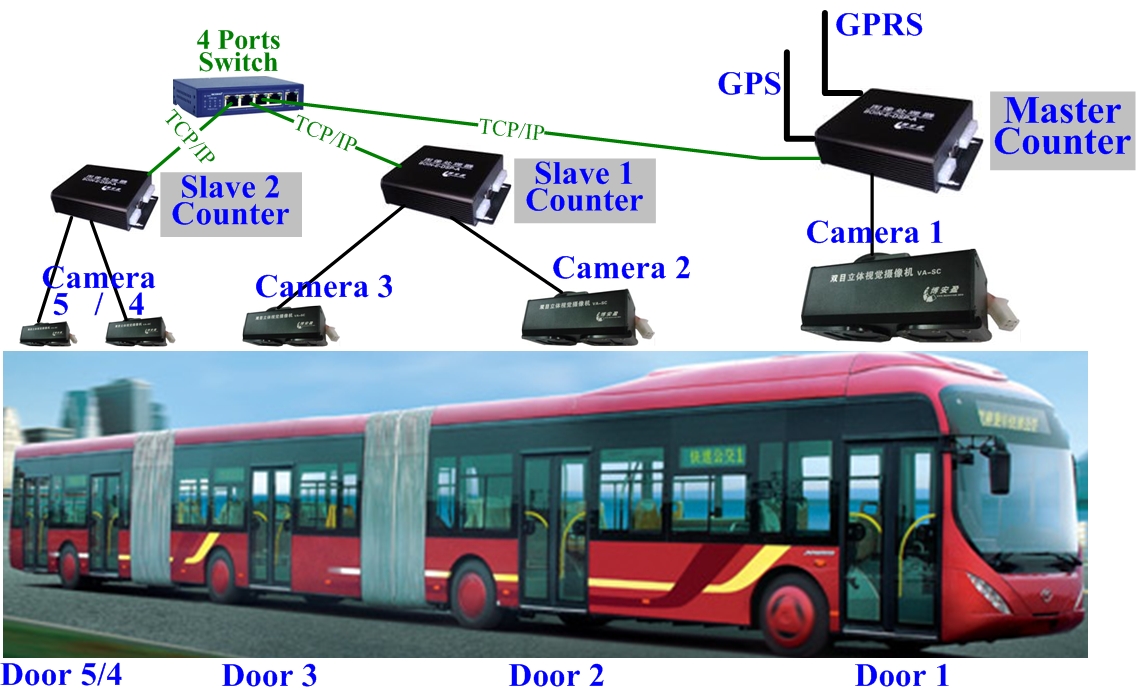

Data flow diagrams of Counter and DVR on the bus

Data flow diagrams of Counter and DVR on the bus

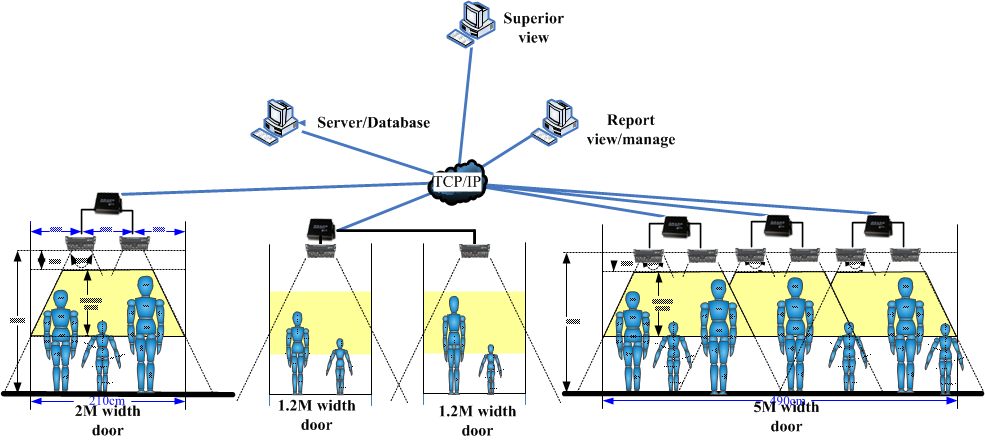

System statistics diagrams of passenger flow in the shopping mall

System statistics diagrams of passenger flow in the shopping mall

GPS/GPRS Description

iBoin-VPC counter can match optional iBoin-GGM module with GPS positioning and GPRS data communication features. Counter contains the geographical coordinates can be sent in real time to the background information of each passenger records in the computer, save to database, for reporting software, and users of other applications use.

Due to the iBoin-GGM between the module and the counter is carried out through two RS232 serial communication, therefore, Counter have only one RS232 output is available if you install GGM module, such as connect LCD display. Characteristics of the iBoin-GGM module is as follows:

GPRS Features

GPS Features

  • Quad band 850/900/1800/1900MHz
  • GPRS multi-slot class 10 standard
  • GPRS mobile station class B standard
  • Content GSM phase 2/2+ standard??????Class 4 (2 W @ 850/900 MHz)??????Class 4 (2 W @ 850/900 MHz)
  • Low power consumption
  • GPRS class 8/10: Max 85.6 kbps (downstream rate )
  • Positioning accuracy : <2.5 meter CEP
  • Power consumption (GSM idle mode): Capture:77mA ?Track:76mA
  • SIM card interface
  • Antenna connector for GPS&GPRS

Other

Accessories:GPS/GPRS antenna:each 5 meter
Certification:CE ,ROHS

Physical Characteristics

Size — RJ45×1 Standard Ethernet port
— People counter:154×120×45mm (L×W×H) — USB1.1×2 Universal serial bus ports
— Stereo Camera:126×50×48.5mm(L×W×H) — Digital Divide GPI/O
Power (4 level + 4 switch input +2 relay output)
— Power input:DC12/24V(8-36V wide voltage input) — GPS+GPRS Module(Optional)
— StereoCamera consumption:≤3W Environmental adaptation
— People counter consumption:≤5W — MTBF: >40000 hours
The communication interface — Operating temperature range:-25~+55celsius
— RS485×1 Standard serial interface — Relative humidity (RH):10%~90% Not condensing
— RS232×1 Standard serial interface — Heat dissipation: no active cooling, passive cooling
Note:
The product specification information above is for reference only, if there are changes in technical specifications or error, are subject to change without notice, product specification shall prevail.
