iBoin-IVS-CH1B Intelligent Video Surveillance Image Processor

Product features

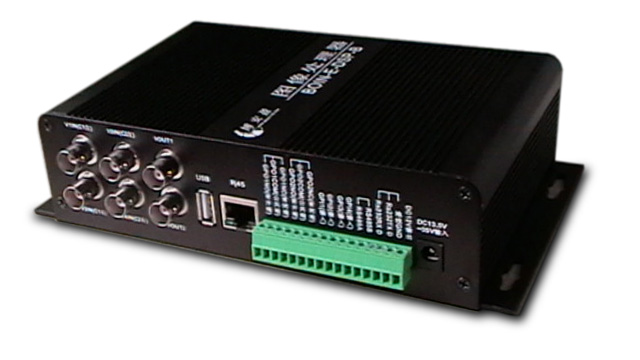

VA-VS01-B Intelligent Video  Surveillance Image Processor

VA-VS01-B Intelligent Video Surveillance Image Processor

  • high detection rate and high accuracy
  • 7×24 Round-the-clock working stability
  • strong, compact and reliable
  • adapt to all kinds of light environment
  • 4 interface, many alarm
  • Analog video input
  • easy installation, supporting software friendly
  • DSP embedded, independent operation
  • wide temperature operation, low power consumption
  • excellent anti-interference ability, can be filtered by: the shadow, leaves shake, lamp, flashlight, mosquito and moths, dogs and cats, small animals and the cause of the error

Product introduction

VA-VS01-B Intelligent Video Surveillance image processor is a compact precision of intelligent visual analysis module completely into the DSP equipment operation, thus make it has the ability to computer vision, automatic surveillance each pixel in video, effectively enhance traditional video surveillance of automatic detection and analysis ability, enhance strength, improve the efficiency of surveillance and warning and automatic response, so as to achieve the alarm 7×24 round-the-clock surveillance for important period of time or unattended surveillance. Also, the intelligent analysis function of DSP embedded completely,Intelligent Video Surveillance image processor that the installation, use and maintenance is very convenient. The equipment can be used for any need video content motion object detection and tracking, analysis and surveillance and alarming sites, such as various video surveillance system, CCTV, etc.

The alarm data can through Intelligent Video surveillance image processor theTCP/IP,RS485 and RS232, USB interface. The built-in independent digital I/O port can be conveniently connected to other surveillance devices to provide diversification sound-light alarm information. Such as:alarm horn, alarm lamp, SMS, MMS, etc are optional video coding module and GPRS module.

VA-VS01-B Intelligent Video Surveillance Image Processor can choose H.264 video、audio coding modele,ues in simulate video coding,and use TCP/IP translate video,it also can be developed on software and hardwares:

  • Real time scrutiny resolution ratio:PAL:704*576;NTSC:704*480
  • Compress resolution ratio:QCIF/CIF/2CIF/DCIF/4CIF
  • Video frame:PAL:1/16-25 F/S,NTSC:1/16-30 F/S user-defined
  • Compress output :32K-2M,user-defined(32K-8M,bps)
  • Audio input:1 channel (2.0Vp-p, 1KΩ)
  • Audio output:1channel(600Ω)
  • Sound input:1channel(2Vp-p,1KΩ)

Product function

  • Tripwire
  • Multi-line tripwire
  • Entered
  • Exited
  • Loitering
  • Left behind
  • Taken away
  • Appeared
  • Disappeared
  • Converse
  • Scene Change

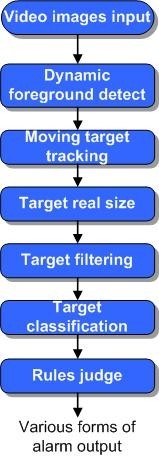

Algorithm process

VA-VS01-B Algorithm process

VA-VS01-B Algorithm process

Algorithm performance index

Algorithm type Dynamic background modeling
Processing speed 360×288,25FPS
Target size No less than 5 x 5 pixel, 10 x 10 pixel suggestion
Target number Each video can also detection 40 moving objects
Rule number Each video support 1-10 rules
Detection area Full screen, rectangular, irregular area, does not contain area
Precision 90%-99%(depending on the scene and complex)
Self detection image Support for detecting moving images, and shelter, interference
light Should not be less than the lowest illuminance 1Lux (color cameras), black and white camera (0.1 Lux), For less than 0.1 illuminance Lux, have light device or selection of high-performance video camera as dynamic
Weather conditions Round-the-clock rain, snow, fog in such weather conditions, hail, reliable detection can be without interference
anti-interference Effective from small animals, trees, clouds, swinging shadows causes slight movement false-negatives, etc.
Image dithering Have strong adaptability, general image dithering without interference

Physical properties

  • Size:
    • -(L×W×H)204×177×49 mm
  • Power:
    • -The power input:DC12/24V(8~36V wide voltage input)
    • -power consumption:≤5W
  • The communication interface:
    • -RS485×2 Standard serial port
    • -SD card
    • -RJ45×1 Standard Ethernet port
    • -Digital isolating switch GPI/O(4+2)
    • -GPRS/DVS(optional)
  • Environmental adaptation:
    • -MTBF: >40000 hours
    • -Working temperature range:-25~+55℃
    • -Relative humidity: 10% ~ 90% no condensation
    • -Heat: no active cooling, heat using passive structure

Related Software

  • Client:iBoin_IVS_Client.exe
  • Alarm:iBoin_IVS_Alarm.exe
  • Rule:iBoin_IVS_Rule.exe
  • System:iBoin_IVS_System.exe
  • Server:iBoin_IVS_Server.exe

Statement

Like any intelligent technology, intelligent video analysis itself cannot offer 100% inspection accuracy. Users in the use process, some uncertain factors will affect the precision.
